Description

• Easy installation: With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male female quick connectors
• Hight Efficiency: 2PCS Polycrystalline solar cell efficiency: 14.35%

• 20A PWM Charge Controller: 8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal, and Calcium. 20 amps 12V 24v auto continuous charging capacity, enables use of up to 12V 360watts, 24V 720watts.
• Green Solar System: Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
• Warranty: 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
• Multiple packages: Order will be delivered in multiple packages

• Specification

  100W Mono Solar Panel

  • Peak Power (Pmax):100W
  • Peak Circuit Voltage(Voc):22V
  • Max Power Voltage(Vmp):17.48V
  • Short Circuit Current(Isc): 6.21A
  • Max Power Current(Imp):5.72A
  • Wind resistance: 2400pa
  • Weight:20.94 lb
  • Dimension:40.2*26.4*1.18inches (1020x670x30mm)
  • Application Class:Class A

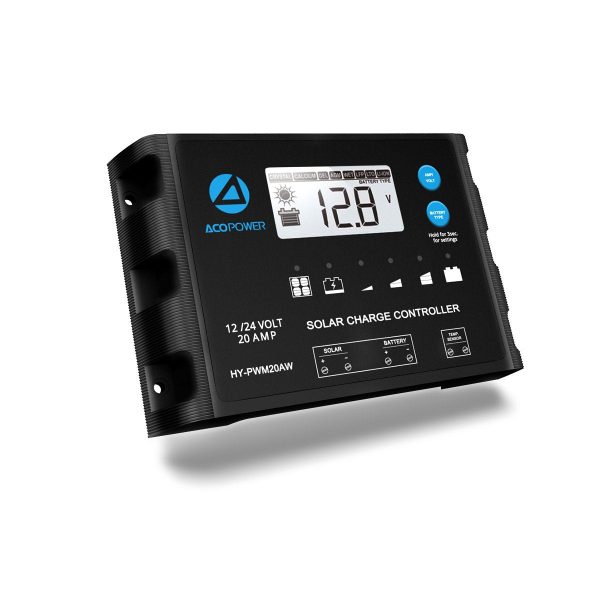

  • 20A PWM Charge Controller

    • Nominal Voltage: 12 V 24V DC
    • Rated Charge Current: 20A
    • Max. PV Input Voltage: 50V
    • Battery Start Charging Voltage: 3V
    • Temperature Compensation Coefficient: -24mV °C
    • Operating Temperature: -40°F to 140°F
    • Storage Temperature: -40°F to 185°F
    • IP Enclosure Grade: IP65
    • Dimensions: 5.59x 3.7x 1.06 inches

    • Packing list


      • 2PCS 100W Polycrystalline Solar Panel
      • 1PC 20A PWM Charge Controller
      • 2 Sets Mounting Z Bracket
      • 1 Pair 30ft 12AWG PV Cable
      • 1 Pair  8FT 8AWG Tray Cable
      • 1 PC Cable Entry Housing
      • 1 Pair PV T Y Connectors
